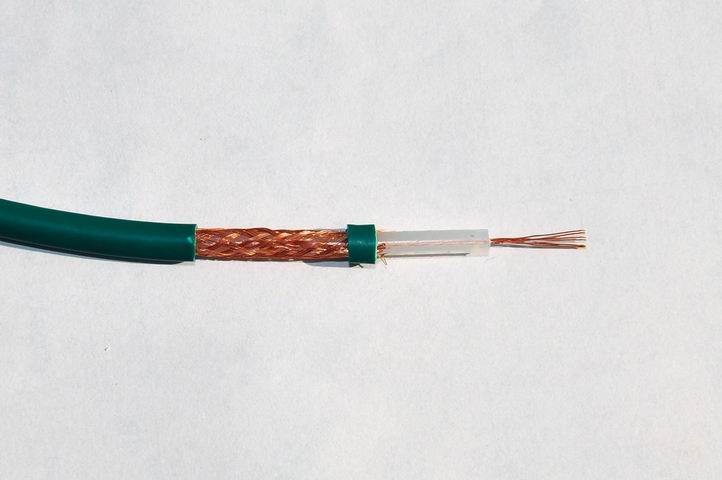

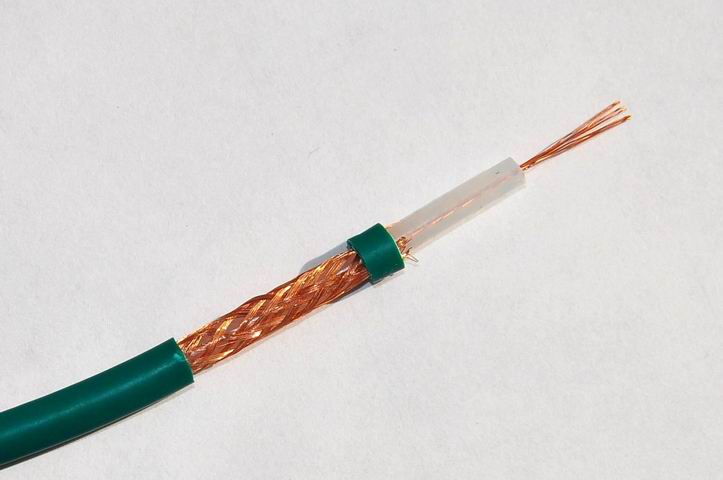

| Coaxial Cable RG174/U-Series | |||||||
| Physical Characteristics | |||||||
| Component | Inches | mm | |||||
| Inner Conductor Diameter | 0.0189 | 0.48(7*0.16) | |||||
| Diameter Over Dielectric | 0.0591 | 1.50(SPE) | |||||
| Outer Conductor SHIELD | Tinned Copper Braid 90% Covera | ||||||
| Diameter Over Jacket Black PVC | 0.110 | 2.80 | |||||
| Mechanical and Electrical Characteristics | |||||||
| Impedance | 50±2.0 Ohms | ||||||
| Capacitance | 100(pF/m) | ||||||
| Velocity of Propagation | 66% | ||||||
| Return Loss(dB) VHF | 20dB | ||||||
| Return Loss(dB) UHF | 18dB | ||||||
| Attenuation[@68°F. (20℃)] | |||||||
| Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) | |||||
| 50 | 6.09 | 20 | |||||
| 200 | 12.20 | 40 | |||||
| 800 | 25.57 | 84 | |||||
| 1000 | 28.62 | 94 | |||||
| 1800 | 42.61 | 140 | |||||
