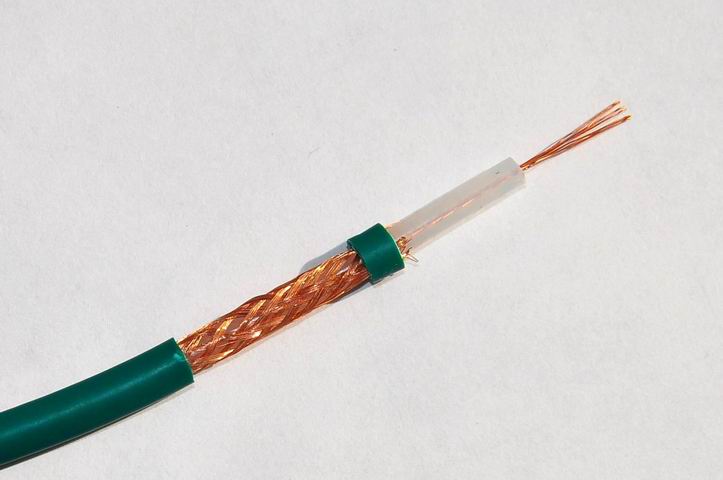

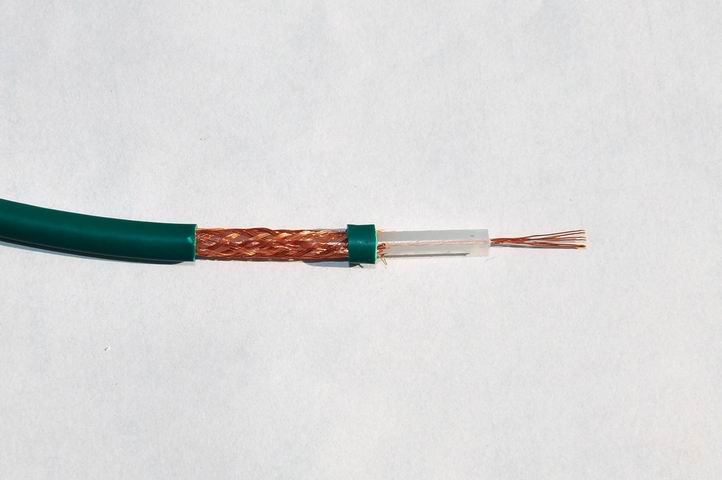

| Coaxial Cable RG214-Series | |||||||
| Physical Characteristics | |||||||
| Component | Inches | mm | |||||
| Inner Conductor Diameter | 7×0.03 | 7×0.75 | |||||
| Diameter Over Dielectric | 0.283 | 7.20 | |||||
| Diameter Over Outer Conductor | 0.326 | 8.31 | |||||
| Diameter Over Jacket | 0.424 | 10.80 | |||||
| Mechanical and Electrical Characteristics | |||||||
| Impedance | 50±2.0 Ohms | ||||||
| Capacitance | 98(pF/m) | ||||||
| Velocity of Propagation | 83% | ||||||
| Return Loss(dB) | VHF30-300MHz≥ | 35dB | |||||
| UHF300-900MHz≥ | 30dB | ||||||
| Screening Efficiency(dB) | VHF5-50MHz≥ | 85dB | |||||
| UHF200MHzUpward≥ | 90dB | ||||||
| Attenuation[@68°F. (20℃)] | |||||||
| Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) | |||||
| 50 | 0.17 | 4.3 | |||||
| 230 | 0.36 | 9.2 | |||||
| 470 | 0.53 | 13.6 | |||||
| 860 | 0.82 | 20.9 | |||||
| 1000 | 0.90 | 23.0 | |||||
